Agilent / HP / Keysight 8991A

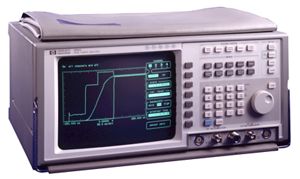

8991A Peak Power Meter
This Analyzer provides complete and accurate characterization of today's complex pulsed signals.
It is capable of performing seven automatic timing measurements (rise time, fall time, pulse width, PRI, PRF, duty cycle, and delay) and five automatic power measurement (peak power, average power, pulse top/base amplitude, and overshoot) with push button ease.
Front panel operation is intuitive and straightforward.
Data entries can be typed in or made with the front panel knob; automatic measurements are made with simple keystroke.
Ampl & time markers
Dual timebase windowing
Measurement limit test
2 sensor & 2 video channels
100MHz ext trig, 1MHz int trig
Form Factor: Benchtop
Number of Channels: 4Ch
Frequency Range: 20MHz to 40GHz
Power Range: 0.501187233627272uW to 100mW
Dynamic Range: >45dB
Minimum Pulse Width: 20ns
p>Rise Time: <5ns
Vertical sensitivity: 100mV/div to 500mV/div
Time Base Range: 2ns/div to 5s/div
