Agilent / HP / Keysight 89640S

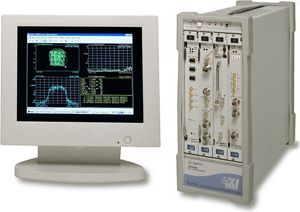

89640S VXI-Based 2.7 GHz RF Vector Signal Analyzer

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

The Agilent 89640S is a vector signal analyzer. This anallyzer has advanced digital signal processing and unique error analysis tools that are needed to troubleshoot and measure the RF and modulation quality of digitally modulated signals. Its flexible demodulation features work on wideband and narrowband signals, proprietary signals and standards based signals.

Key Points

Specifications

Modular, pre-configured hardware for VXI-based vector signal analysis
DC to 2.7 GHz frequency range and 36 MHz of analysis bandwidth
<-157 dBm/Hz sensitivity
Add a second channel for I/Q baseband and RF coverage in one box
DSP-based spectrum, vector, demodulation, and RF-scope analysis tools
Full access to all of the 89600 VSA software signal analysis capabilities
Connects to your PC via IEEE 1394 "Firewire" interface
