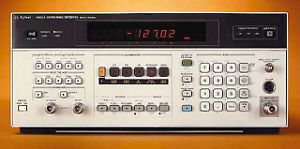

Agilent / HP / Keysight 8902A
8902A Measuring Receiver
Description
The Agilent 8902A measuring receiver delivers the accuracy and resolution of a high performance power meter at frequencies from 150 kHz to 1.3 GHz (50 MHz to 26.5 GHz with the Agilent 11793A microwave converter) and levels from +30 dBm to -127 dBm.
It accurately measures AM, FM and M, including residuals and incidentals, with a single keystroke. The Agilent 8902A measuring receiver, with the Agilent 11793A, counts RF signals to 26.5 GHz with 10 Hz resolution and excellent long-term frequency stability. The 8902A measuring receiver with Option 050 offers increased power measurement accuracy.
This option specifies Tuned RF Level on the 8902A measuring receiver to an accuracy of ±(0.015 dB + 0.005 dB/10 dB step).
Key Points
RF power: digital power meter accuracy
Tuned RF level: 0 to -127 dBm dynamic range
Carrier noise: AM and phase noise measurements to -140 dBc/Hz
AM and FM: 1% accuracy; Phi-M:3% accuracy
RF frequency: 1 Hz resolution
Audio: level, frequency, and distortion
Specifications
Frequency Modulation:
RATES:
20 Hz to 10 kHz, 150 kHz <=fc <10 MHz.
20 Hz to 200 kHz, 10 MHz <=fc<=1300 MHz.
20 Hz to 200 kHz, 10 MHz <=fc<=26.5 GHz.
DEVIATIONS:
40 kHz peak maximum, 150 kHz<=fc <10 MHz.
400 kHz peak maximum, 10 MHz<=fc<=1300 MHz.
400 kHz peak maximum, 10 MHz<=fc<=26.5 GHz.
<
p>RESIDUAL FM (50 Hz to 3 kHz BW):
<8 Hzrms at 1300 MHz, decreasing linearly with frequency to <1 Hzrms for 100 MHz and below.
<17 Hzrms' 1300 MHz
Amplitude Modulation:
RESIDUAL AM (50 Hz to 3 kHz BW): <0.01%rms.
RATES:
20 Hz to 10 kHz, 150 kHz<=fc<10 MHz.
20 Hz to 100 kHz, 10 MHz<=fc<=1300 MHz.
Phase Modulation:
RATES:
200 Hz to 10 kHz, 150 kHz <=fc <10 MHz.
200 Hz to 20 kHz, 10 MHz<=fc<=1300 MHz.
200 Hz to 20 kHz, 10 MHz<=fc<=26.5 GHz.
ACCURACY:
±4% of reading ±1 digit, 150 kHz <=fc <10 MHz.
±3% of reading ±1 digit, 10 MHz <=fc <=1300 MHz.
±3% of reading ±1 digit, 10 MHz <=fc<= 26.5 GHz. For rms detector add ±3% of reading.
Frequency Counter:
RANGE:
150 kHz to 1300 MHz.
150 kHz to 26.5 GHz.
<
p>SENSITIVITY:
12 mVrms (–25 dBm), 150 kHz<=fc<=650 MHz.
22 mVrms (–20 dBm), 650 MHz<=fc<=1300 MHz.
40 mVrms (–15 dBm), 150 kHz<=fc<=650 MHz.
71 mVrms (–10 dBm), 650 MHz <fc<=1300 MHz.
40 mVrms (–15 dBm), 1300 MHz <fc<=26.5 GHz.
MAXIMUM RESOLUTION:
1 Hz.
10 Hz.
General Specifications:
WEIGHT: Net 23.4 kg (52 lb); Shipping 31.4 kg (69 lb).
DIMENSIONS: 190 mm H x 426 mm W x 551 mm D (7.5" x 16.8" x 21.7").
POWER: 100, 120, 220, or 240V (+5%, –10%); 48 to 66 Hz; 200 VA maximum.
TEMPERATURE:
Operating: 0 °C to 55 °C.
Storage: – 55 °C to 75 °C.
