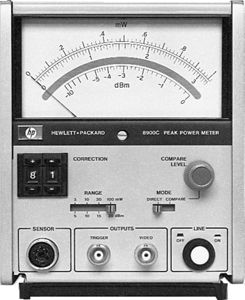

Agilent / HP / Keysight 8900C
8900C Peak Power Meter Analog Meter
Description
This Power Meter directly displays the peak power of RF pulses over a 100MHz to 18GHz frequency range.
Measurements can be made on pulses with widths from 1µs (100ns in compare mode) to CW, and repetition rates from 100Hz (0Hz in compare mode) to 100KHz.
This unit is an economical analog meter calibrated in watts and dBm.
The analog display with its large, easy to read scale makes it simple to peak or null pulsed power systems.
Key Points
Frequency range 100MHz to 18GHz
Direct display of RF pulses
Use with the 84811A peak power sensor
Specifications
Form factor: Benchtop
Number of channels: 1Ch
Minimum frequency: 100MHz
Maximum frequency: 18GHz
Minimum power: 1mW
Maximum power: 100mW
Maximum dynamic range: 20dB
Accuracy: 10 %
