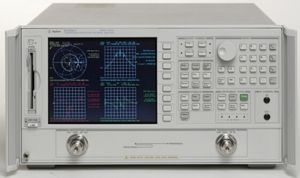

Agilent / HP / Keysight 8722ET
8722ET Transmission/Reflection Vector Network Analyzer, 50 MHz to 40 GHz
The Agilent/HP 8722ET Network Analyzer is an instrument which measures the complex transmission and reflection characteristics of two port devices in the frequency domain.
The Agilent/HP 8722ET Transmission/reflection vector network analyzer integrates a microwave source, tuned receiver, and transmission/reflection or S parameter test set into a single, cost-effective instrument.
Each display channel of the 8722ET has five independent markers that can be displayed simultaneously. Twenty independent markers can be displayed in the 4-channel display mode when markers are uncoupled.
The 8722ET provides display in Cartesian, Smith chart, and Polar formats. The maximum delay is limited to measuring no more than 180° of phase change within the minimum aperture.
Up to 31 instrument states can be stored internally and recalled via the SAVE/RECALL menu. Instrument states include all control settings, active limit lines, active list frequency tables, memory trace data, active calibration coefficients, and custom display titles. Storage is in nonvolatile memory.
Data, instrument states, user graphics, data plots, and test sequences can be stored on internal floppy disk in MS-DOS or Agilent’s standard LIF formats.
The tuned receiver of the 8722ET tunes the receiver for a synthesized CW input signal at a precisely specified frequency. The time bases of the external RF source or sources must be tied to the external reference input of the network analyzer (rear panel BNC).
The GPIB connector at the rear panel of 8722ET allows communication with compatible devices including external controllers, printers, plotters, disk drives, and power meters. Parallel port connector is used with parallel (or Centronics interface) peripherals such as printers and plotters.
RS-232 connector is used with serial peripherals such as printers and plotters. The mini-DIN connector is used for the optional AT compatible keyboard for titles and remote front-panel operation.
A wide range of accessories support the Agilent 8720E family of network analyzers, including calibration kits, verification kits, cables, and adapters in 7 mm, 3.5 mm, 7-16, Type-N, and 2.4 mm coax and in the standard waveguide bands. The standards used in the 3.5 mm, Type-N, and 2.4 mm calibration and verification kits use precision slotless connectors (PSC-3.5, PSC-N, and PSC-2.4).
Excellent measurement accuracy
Two measurement channels
Four display channels
Frequency and power sweeps
Fast sweep and data transfer speed
Pass/Fail testing, powerful marker functions
Electronic calibration (ECal)
Internal automation with test-sequencing
Optional time-domain, high power test set, four samplers and TRL calibration, direct sampler access, frequency-offset mode
Frequency Accuracy: +/- 10 ppm
Power Resolution: 0.01 dB
Sweep range: 0.01 dB
IF Bandwidth: 10 Hz
Operating Temperature: 0° to 55° C
Non-operating Temperature: –40° to +70° C
Power Supply: 48 to 66 Hz, 115 V nominal (90 V to 132 V) or 230 V nominal (198 V to 264 V), 280 VA max.
Shipping Weight: 28 kg (61 lb)
Dimensions: 222 mm H x 425 mm W x 457 mm D
(8.75 x 16.75 x 18.0 in)
