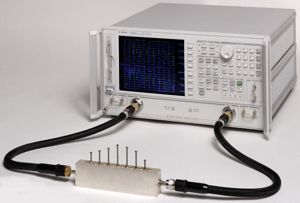

Agilent / HP / Keysight 8719ES
8719ES S-parameter Vector Network Analyzer, 50 MHz to 13.5 GHz
- 90 Day Warranty Included
- 21 Month Warranty Available
- Save 80% - 90% from New
- Calibration Available
- Questions? Call 888-505-8378
Description
The Agilent/HP 8719ES S-Parameter vector network analyzer is an instrument which measures the complex transmission and reflection characteristics of two port devices in the frequency domain.
The 8719ES does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two port.
Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
The 8719ES Network Analyzer utilizes synthesized frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels.
The 8719ES also can perform ratioed measurements (including phase), which require multiple receivers.
The 8719ES can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.
Data, instrument states, user graphics, data plots, and test sequences can be stored on internal floppy disk in MS-DOS or Agilent’s standard LIF formats.
Test sequences can be stored internally in RAM, to an internal or external disk drive, or loaded from a computer over the GPIB interface. Sequence 6 is saved in nonvolatile storage and can be used as an autostart routine when titled AUTO.
Each display channel of the 8719ES has five independent markers that can be displayed simultaneously. Twenty independent markers can be displayed in the 4-channel display mode when markers are uncoupled.
Option 007 with the 8719ES replaces the standard solid-state transfer switch with a mechanical switch to provide higher output power. Option 085 adds internally controlled 0 to 55 dB step attenuators (5 dB steps) in the receiver path of both ports, an RF loop that allows the addition of an amplifier before the transfer switch, and RF loops after the switch that allow insertion of isolators, required for measurements above 1 watt.
Option 012 allows transmission measurements that bypass the receiver coupler for improved signal-to-noise and sensitivity. The system is capable of antenna measurements to –110 dBm at 40 GHz, and filter rejection measurements to 120 dB.
Option 089 allows direct conversion loss measurement of mixers without need for a reference mixer. RF and IF frequencies must be within the specified operating range of the instrument. This test set modification adds an internal reference channel switch and deletes the reference channel output.
Key Points
Output accuracy of 2dB
DIN keyboard
GPIB, Parallel port and RS-232 connectivity
Excellent measurement accuracy
Two measurement channels
Four display channels
Frequency and power sweeps
Fast sweep and data transfer speed
Pass/Fail testing, powerful marker functions
Electronic calibration (ECal)
Internal automation with test sequencing
Specifications
Form Factor: Benchtop
Type: Vector
Integral Test Set: S Parameter
Source Frequency Accuracy: 0.001 %
Maximum Output Power: 3.16228mW
Output Accuracy: 2dB
Number of Receiver Channels: 2Ch
Non-operating Temperature: –40° to +70° C
Power Supply: 48 to 66 Hz, 115 V nominal (90 V to 132 V) or 230 V nominal (198 V to 264 V), 280 VA max.
Net Weight: 25 kg (54 lb)
Shipping Weight: 28 kg (61 lb)
Dimensions: 222 mm H x 425 mm W x 457 mm D
(8.75 x 16.75 x 18.0 in)
