Agilent / HP / Keysight 86118A

86118A 70 GHz Dual Remote Sampling Head

Please help us customize your browsing experience, by selecting one the below.

Description

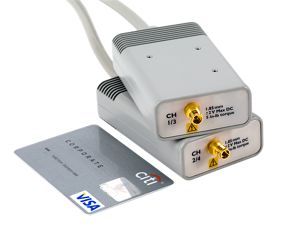

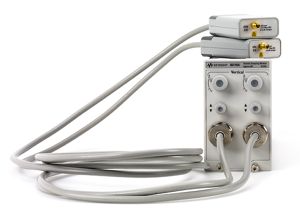

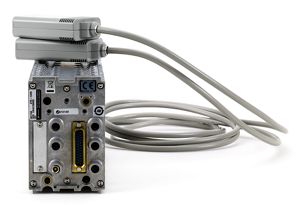

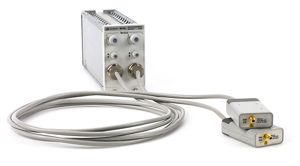

With over 70 GHz of electrical bandwidth, the 86118A provides one of the fastest channel performance available today. A well behaved frequency response minimizes attenuation of the signal spectrum and maintains fast edge speeds. The 86118A is a unique module for the 86100 Infiniium digital communications analyzer because the sampling electronics are located in a small, lightweight housing that can be placed up to 2 meters away from the mainframe to minimize loss through cabling.

In order to measure differential signals option 86118A-H01 is highly recommended. It provides less than 65 ps skew between the two channels and alignment capability within 150 ps.

Key Points

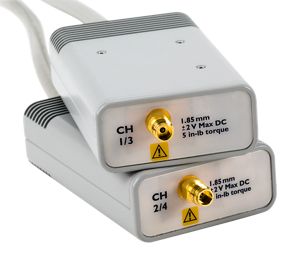

Two 70 GHz electrical channels with 1.85 mm (f) connectors on two remote sampling heads
Characteristic rms noise: 0.4 mV (30 GHz BW), 1.3 mV (70 GHz BW)
Maximum input signal: ± 2 Vdc
Cable length: 2 m (each head)
Electrical Inputs: 1.85 mm female. Must select m or f connector savers (see options)

Specifications

Operating Temperature: 10 °C to +40 °C (50 °F to +104 °F)
Non Operating Temperature: –40 °C to +65 °C (–40 °F to +158 °F)
Operating Altitude: Altitude Operating Up to 4,600 meters (15,000 feet)
Power (max) Power (max) 100/120Vac 50/60/400 Hz
With typical modules: 150 VA to 230 VA at 25°C
220/240Vac 50/60 Hz, 700 Watts Maximum
Weight Mainframe without modules: 20.5 kg (43 lb)
Weight Typical module: 1.2 kg (2.6 lb)
Mainframe dimensions (excluding handle):
- Without front connectors and rear feet: 221 mm H x 426 mm W x 530 mm D (7 inch x 16.76 inch x 20.9 inch)
- With front connectors and rear feet: 234 mm H x 426 mm W x 601 mm D (9.23 inch x 16.76 inch x 23.67 inch)
- With front cover and rear feet: 234 mm H x 426 mm W x 612 mm D (9.23 inch x 16.76 inch x 24.1 inch)
