Agilent / HP / Keysight 86100C

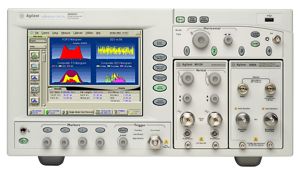

86100C Infiniium DCA-J Wideband Oscilloscope Mainframe
Description

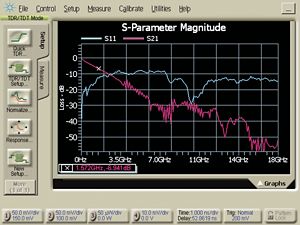

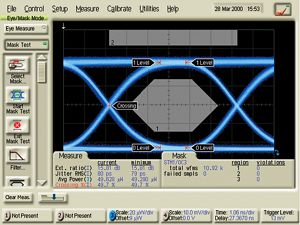

The 86100C DCA-J combines extremely high accuracy and precise repeatability with great ease of use to simplify characterizing signals from 50 MHz to 80GHz. Digital designers can combine the mainframe and modules into four key instruments with state of the art performance.
Key Points

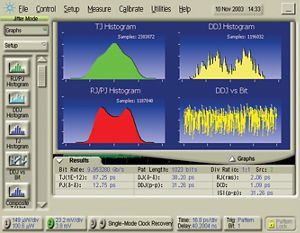

Decomposition of jitter into Total Jitter (TJ), Random Jitter (RJ), Deterministic Jitter (DJ), Periodic Jitter (PJ), Data Dependent Jitter (DDJ), Duty Cycle Distortion (DCD), and Jitter induced by Intersymbol Interference (ISI)
Jitter frequency spectrum
Isolation and analysis of Sub-Rate Jitter (SRJ), that is, periodic jitter that is at an integer sub-rate of the bitrate

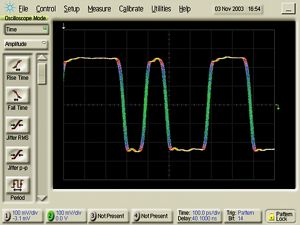

Capture of long single valued waveforms. Pattern Lock triggering and the waveform append capability of Option 201 enable very accurate pulse train data sets up to 223 bits long
Equalization - the DCA-J can take a long single valued waveform and route it through an equalizer algorithm (default or user defined) and display the resultant equalized waveform in real time. The user can simultaneously view the input (distorted) and output (equalized) waveforms
Interface to MATLAB® analysis capability
Specifications
Power: 115V, 5.7A, 230V, 3.0A 50/60Hz
Trigger Modes: Internal trigger, External direct trigger, Limited bandwidth DC to 100MHz, Full bandwidth DC to 3.2GHz
Characteristic: < 1.0ps RMS + 5*10E-5 of delay setting
Maximum 1.5ps RMS + 5*10E-5 of delay setting
Trigger sensitivity: 200m Vpp (sinusoidal input or 200ps minimum pulse width)
Trigger level adjustment: –1V to + 1V
