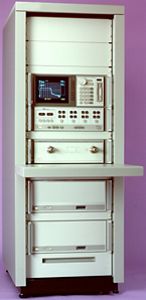

Agilent / HP / Keysight 85108A
85108A Pulsed-RF Network Analyzer System, 2 to 20 GHz
Description
This Network analyzer is an instrument which measures the complex transmission and reflection characteristics of two port devices in the frequency domain.
It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two port.
Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
Key Points
Isothermal, high power, pulsed
Wide Dynamic Range
Low duty cycles
Up to 100W pulsed outpt/20W CW
1600mm rack
Specifications
Form Factor: System
Output Power: 1.5848E-11Watts to 12.5893mW
Number of Receiver Channels: 1Ch
Minimum Frequency: 2GHz to 20GHz
Dynamic Range: 73dB to 89dB
Maximum Input Voltage: 89V(dc+p
