Agilent / HP / Keysight 85060B

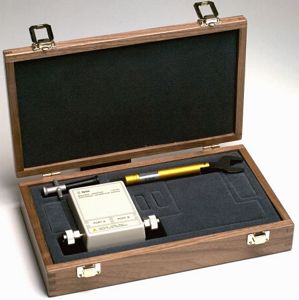

85060B 2-port MW Electronic Calibration (ECal) Module, 1 to 18 GHz
Description
This electronic calibration (ECal) module provides repeatable, accurate measurements while bringing convenience and simplicity to your daily calibration routine.
ECal replaces the traditional calibration technique which uses mechanical standards.
With mechanical standards, you are required to make numerous connections to the test ports for a single calibration.
These traditional calibrations require intensive operator interaction, which is prone to errors.
Key Points
Full two-port calibration with a single-connection for easy calibrations
Precision slotless connectors provide greater measurement accuracy
and repeatability than standard connectors
Simple user interface
Compatible with Agilent network analyzers
Straight-forward noninsertable calibrations
Specifications
Connector: 7mm
Frequency range: 1GHz to 18GHz
Maximum power: +20dBm
Minimum power: -45dBm
