Agilent / HP / Keysight 8487A

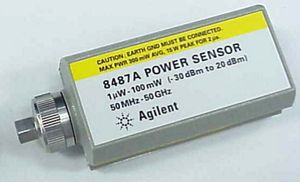

8487A Power Sensor
Description
This Agilent / HP 8487A is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the discontinued 43x power meters, and provides extraordinary accuracy and stability.
This power sensor gives you extremely low SWR even at mm-wave frequencies, and is traceable to the U.S. National Institute of Standards and Technology (NIST).
This calibration eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter / sensor combinations.
Key Points
Excellent SWR for reducing mismatch uncertainty
Accurate calibration and traceability to NIST
Specifications
Zero set: ±50 nW
Zero Drift: <±10 nW
<
p>Measurement Noise: <110 nW
Accuracy or Linnearity: 0.6dB
Connenctor Type: 2.4 mm (m)
Frequency Range: 50MHz - 50GHz
Interfaces/Other: 0dB
Min/Max Power: 10dBm - 20dBm
Type: Power Sensor
Power linearity: +10 dBm to + 20 dBm: (±3%)
Maximum Power: 300 mW avg, 15 W pk; 30 W µs per pulse
Net weight: 0.14 kg (.28 lb)
Shipping weight: 0.5 kg (1.0 lb)
