Agilent / HP / Keysight 8482B

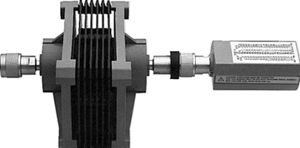

8482B High-Power Sensor
Description
This thermocouple power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the discontinued 43x power meters, and provides extraordinary accuracy and stability.
This power sensor gives you extremely low SWR and is traceable to the U.S. National Institute of Standards and Technology (NIST). A calibration port is included with the above power meters for calibration with the power sensor.
This calibration provides traceability to NIST and it eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter/sensor combinations.
For Wide Dynamic Range Power Measurements to +44dBm, the E-Series E9301B Average Power Sensor is recommended.
Key Points
Excellent SWR for reducing mismatch uncertainty
Thermocouple power sensing element
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
Specifications
Accuracy or Linnearity: 0.6dB
Connenctor Type: Type-N(m)
Frequency Range: 100KHz to 4.2GHz
Interfaces/Other: 0.7dB
Min/Max Power: 35dB to 44dB
Type: Power Sens
Shipping Weight: 4lb
Impedance: 50ohms
Measurement range: 1mW to 25W (0dBm to +44dBm)
