Agilent / HP / Keysight 8482A

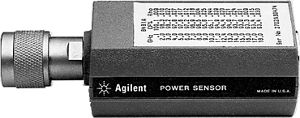

8482A Power Sensor

Please help us customize your browsing experience, by selecting one the below.

Description

The Agilent / HP 8482A Power Sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 43x series power meters, and provides extraordinary accuracy and stability.

The Agilent / HP 8482A power sensor is designed for use with the 435B, 436A, 437B, 438A, 70100A, and the E4418B and E4419B power meters.

These thermocouple and diode power sensors provide extraordinary accuracy, stability, and SWR over a wide range of frequencies (100 MHz to 4.2 GHz) and power levels (-10 dBm to 20 dBm).

The 8482A power sensor also gives you extremely low SWR.

The Agilent / HP 8482A unit has extremely low SWR and is traceable to the U.S. National Institute of Standards and Technology (NIST).

A calibration port is included with the above power meter for calibration with the power sensor.

This calibration eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter / sensor combinations.

Key Points

Excellent SWR for reducing mismatch uncertainty

Accurate calibration and traceability

Accurate average power measurements over -30 to +20 dBm

Frequency range from 100 kHz to 4.2 GHz

Thermocouple power sensing element

Specifications

Form Factor: Handheld

Frequency: 100 kHz to 4.2 GHz

Power (dB): 10 dBm to 20 dBm

Maximum Power (W): 30 Watts

Minimum Power Linearity Range: -10 dB to 20 dB

Minimum Power Linearity Accuracy: 0 dB to 0.2 dB

Maximum Power: 100 mW average; 100 mW peak

Connector Type: Type-N, male

Net Weight: 0.2 kg (0.38 lb)

Shipping Weight: 0.5 kg (1.0 lb)
