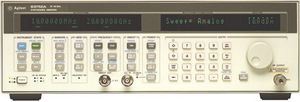

83752A Synthesized Sweeper, 0.01 - 20 GHz
The Agilent/HP 83752A sweeper brings outstanding synthesized performance to the component test market place which delivers the best performance for the price in general-purpose benchtop, swept test, or scalar applications.
The latest technological advances in fundamental oscillator design provide up to 20 GHz of frequency coverage with superior harmonic suppression and no subharmonics. When this excellent spurious performance is combined with high output power capabilities, high measurement dynamic range is achieved.
The Agilent 83752A synthesized sweepers provide support accuracy and stability while maintaining the speed of analog sources. The 83752A provides fully synthesized CW, stepped and ramp sweep modes in broadband and narrowband operation.
Excellent output power flatness and accuracy can be translated to the input port of the device under test with the power flatness correction feature of these sources. This fearure uses a power meter to create an array of power corrections that compensate for power variations in the measurement path between the source and the test device.
With broadband frequency coverage and excellent performance, the Aglient 83752A sweeper is ideal stimuli for frequency translation measurements.
The 83752A make optimal companion sources for scalar measurement applications. Full compatibility is available via the Agilent 8757 system interface bus.
The Agilent 8757D scalar analyzer and 83752A have complementary design that achieves superior frequency accuracy, power accuracy and flatness and significantly reduces measurement uncertainty.
Ten independent, continuously variable markers and a marker sweep function allow fast, efficient analysis of the test device at or between critical measurement frequencies.
The industry standard, default language ensures the compatibility the 83752A sweeper with instruments today and in the future. The second operating language employs Agilent 8350 mnemonics to provide programming compatibility with Agilent 8350 based measurement systems.
Fully Synthesized (phase-locked) CW, step, and ramp modes
2 MHz swept frequency accuracy
Power flatness accuracy
Broad 20 GHz frequency coverage
Internal pulse generator
Flat and accurate output power
Characterize the linear response of the test device.
Offset frequency sweep for mixer test
Agilent 8350 programming mode for backwards compatibility.
Frequency Range: 10 MHz to 20 GHz
Frequency Resolution: 1Hz
Output Range: -15dBm to +10dBm
Output Resolution: 0.01dB
Time Base Stability: +/- 10ppm
Type : Stand-Alone
Internal level accuracy : ±1.5dB
Maximum leveled power: <2 GHz +16 dBm, >2 GHz +17 dBm
Minimum settable power: -10 dBm
Power sweep: ± 25 dB/sweep
Power slope: 0 to ± 2 dB/GHz
Operating temperature: 0 to 55 °C
Power requirements: 90-132 VAC (50-60 or 400 Hz), or 198-264 VAC (50-60 Hz); 400 VA maximum.
Dimensions: 133H x 425W x 483D mm (5.25 x 16.75 x 19 inches)
Weight: Net - 16 kg (35 lb); Shipping - 23 kg (49 lb)
