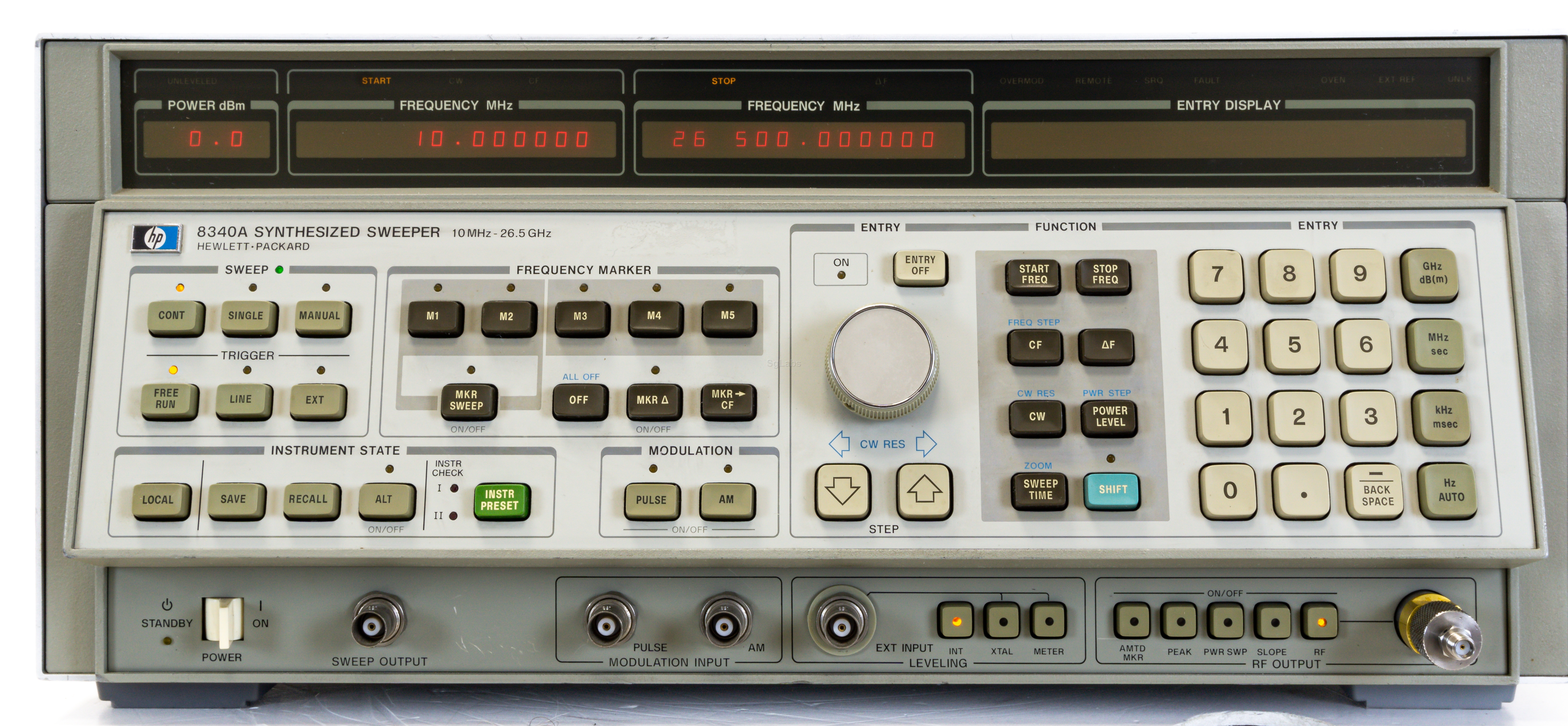

Agilent / HP / Keysight 8340A
8340A Synthesized Sweeper, 10 MHz - 26.5 GHz
Description
This unit offers superior resolution of 1 to 4Hz over the frequency range of 10MHz to 26.5GHz. The output is generated by an indirect synthesis technique that yields low single-sideband phase noise. This makes it an excellent source for use in conjunction with microwave network analyzers like the 8510B. The indirect synthesis technique also gives this a very fast CW switching time of typically better than 35ms. A fast phase-lock feature can also be enabled to give switch times between 11 and 22ms depending on absolute frequency and step size. Long term stability is excellent at 1x10-9/day. Calibrated output range +10dBm to -110dBm. Pulse, AM, FM modulation and a complete analog sweeping with widths as narrow as 100Hz. HP-IB.
Key Points
Low Spurious&Phase Noise
100ns Leveled Pulse width Cap
Specifications
Frequency range: 10 MHz - 26.5GHz
Frequency resolution: 1 to 4Hz
Output range: +10 dBm to -110dBm
Output level resolution: 0.1dB
Internal level accuracy: ±0.9dB
Internal flatness: ±0.6 dB to ±3.6dB depending on output level range
Phase noise: -52dBc to -107dBc / 1Hz noise bw
Pulse, AM modulation
Long term stability is excellent at 1x10-9/day
Output connector: APC-3.5(m)
HP-IB interface
100, 120/220, 240 Vac ±10%; 48-66Hz operation
Weight: 75 lb; Size: 188 mm (7.4 in)H x 426 mm (16.75 in)W x 610 mm (24.0 in)D.
