Agilent / HP / Keysight 8166B

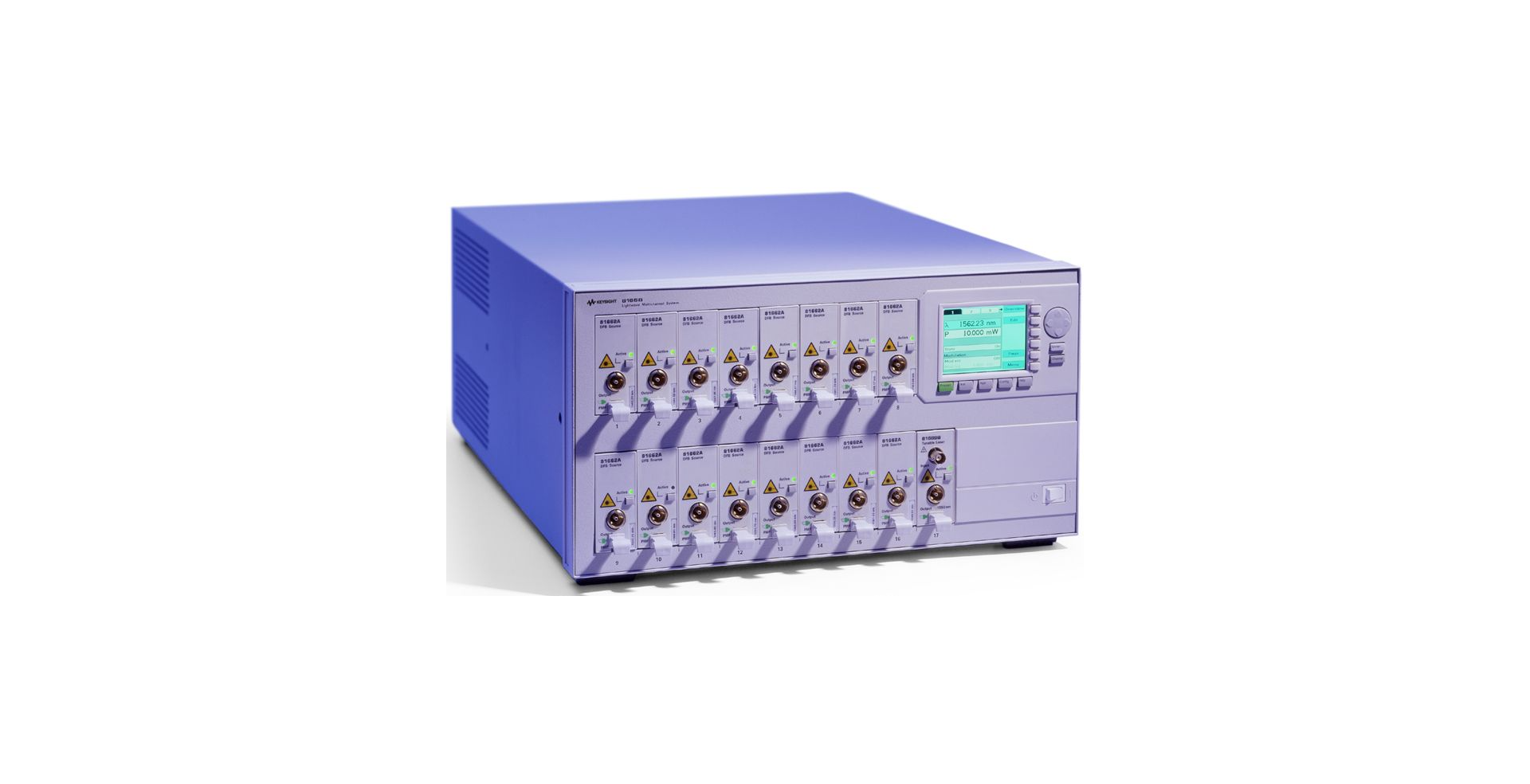

8166B Lightwave Multichannel System
Description
The Agilent 8166B Lightwave Multichannel System is the ideal mainframe for test solutions of multiport optical applications because it hosts up to 17 816xxx series modules such as power modules, compact tunable lasers or fixed laser sources. The 8166B is equipped with 17 Slots to host 816xxx series modules in any combination, synchronized parallel testing of multichannel components, graphical display for immediate control, GPIB interface, parallel and serial ports, and easy firmware upgraded high-level API.
Key Points
Compact mainframe for benchtop or racked usage
Extended system trigger and clocking system
17 slots for hosting power modules, return loss modules, compact tunable lasers or fixed laser sources
Synchronized parallel testing of multichannel components
Specifications
Display:Graphical active color display, 300 x 240 points visible, 4 updates per second, VGA connector for external monitor
Display Resolution:0.0001dB/dBm, 0.01pW to 10pW (depending on power range) , up to 6.5 digits (user definable)
Compatibility:The Agilent 8166B mainframe supports all modules from the 8163A/B Lightwave Multimeter series.
Trigger:True synchronous on all channels. Max. 100 kHz for triggering and 1 MHz (50% duty cycle) for external digital modulation.
Power:AC 100 – 240 V ±10%, 50/60Hz, 450VA max.
Dimensions (Height x Width x Length):240 mm x 430 mm x 580 mm (9.5” x 17” x 23”)
Weight:net 23kg, shipping 45kg
GPIP interface performance:Max. 300 kB/sec (burst data rate during read of 12001 data points from power meter)
RS232 Interface: max. baud rate 115200 bps
Number of Modules:17 Modules
<
p>#Environmental:
Storage temperature:-40°C to +70°C
Operating temperature:0°C to +45°C
Humidity:<95% rH.from 0°C to 45°C
