Agilent / HP / Keysight 8164B

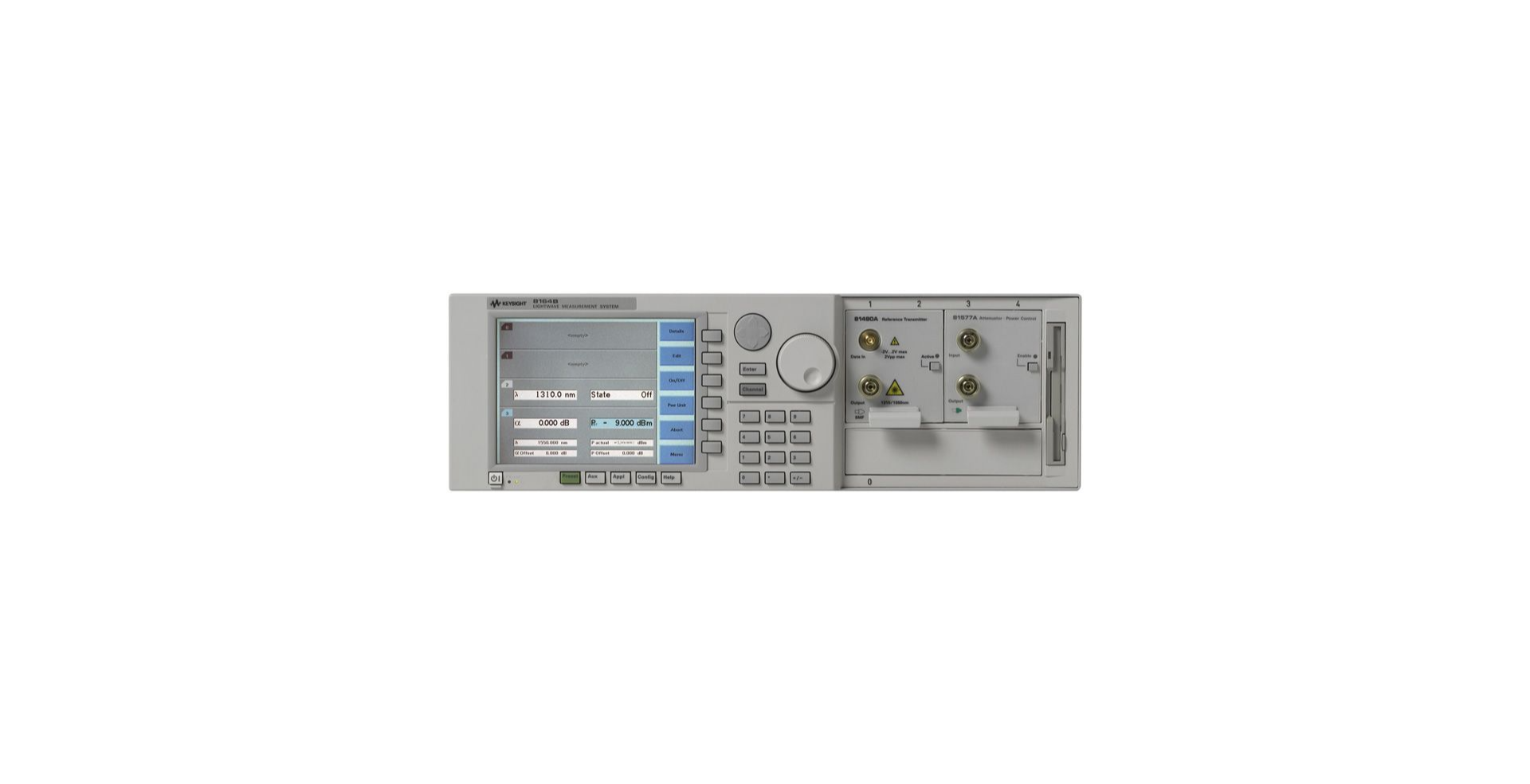

8164B Lightwave Measurement System
Description
The Agilent 8164B Lightwave Measurement System is the ideal mainframe for test solutions of fast and accurate optical applications because it hosts one of Agilent high end tunable laser sources and up to 4 compact modules.
Key Points
1 Slot for hosting a tunable laser source
4 Slots for hosting power modules, return loss modules, compact tunable lasers or fixed laser source
Built-in applications: (Passive Component Test, Stability, Logging
Extensive triggering functionality
Both LAN and GPIB interface for remote control
Specifications
Display:Graphical active color display, 640 x 480 points visible, 4 updates per second, VGA connector for external monitor
Compatibility:The Agilent 8163B mainframe supports all HP 8153A Series and Agilent 8163A & B Series modules.
Trigger:True synchronous on all channels. Max. 100 kHz for triggering and 1 MHz (50% duty cycle) for external digital modulation.
Power:AC 100 – 240 V ±10%, 50/60Hz , 280VA max.
Dimensions (Height x Width x Length): 145 mm x 426 mm x 545 mm (5.8” x 16.9” x 21.6”)
RS232 Interface: max. baud rate 115200 bps
Number of Modules :4/1 Modules
<
p>#Environmental:
Storage temperature:-40°C to +70°C
Operating temperature:10°C to +35°C
Humidity:<80% rH from 10°C to 35°C
