Agilent / HP / Keysight 81630B

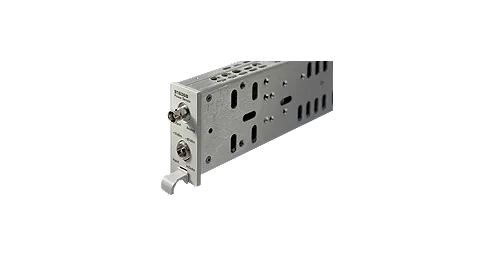

81630B High Power Optical Sensor
Description
This Optical power sensors are the right choice for accurate power measurements on fiber optic devices. This unit is fit into all Agilent 816x Lightwave mainframes and can be used singly or in multiples for parallel measurements of multichannel devices. The output fiber is easily attached using Agilent's flexible connector adapters or bare fiber adapter. Triggered synchronization with tunable laser modules enables powerful spectral measurements, with the advantages of higher resolution, better polarization dependence and cost and time efficient multichannel expandability.
Key Points
Low power uncertainty of ±3.0%
Low polarization dependence of <±0.01dB
Traceable to NIST and PTB
Comprehensive sampling and triggering concept
Low uncertainty in Power and PDL leaves you higher test margins for your components
The traceability gives you the certainty of measurements referenced to internationally accepted standards.
Comprehensive hardware and trigger concept
Specifications
Low power uncertainty: ±3.0%
Low polarization dependence: <±0.01dB
Sensor Element: InGaAs
Wavelength Range: 970 to 1650nm
Power Range: +28 to -70dBm
