Agilent / HP / Keysight 81626B
81626B High Power Optical Head
Description

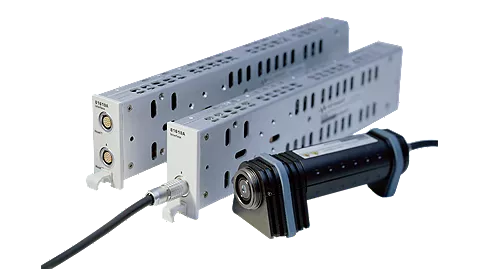

This Power heads are specially designed for low PDL, low spectral ripple and high return loss and are used for optical component test. The heads come with a magnetic D-shape adapter and provide a safe stand. This unit have to be operated with the single (Agilent 81618A) or dual (Agilent 81619A) interface modules. These modules are controlled in any configuration in any of the mainframes 8163B, 8164B and 8166B. A highly flexible connector interface palette addresses connectorized, bare fiber or open beam applications.
Key Points
Low PDL uncertainty of ±0.002dB
Large area detector 5mm
Large Area InGaAs Sensor
Optical Range of 850 to 1650nm
Power Range from +27dBm to -70dBm
Analog BNC Signal Output Port
Specifications
Return Loss: >45dB
<
p>Noise (peak to peak): <500pW
Averaging Time (minimal): 100µs
Dimensions: 57mm x 66mm x 156mm
Weight: .5kg
Operating Temperature: 0°C to +35°C
Warm-up Time: 40 minutes
