Agilent / HP / Keysight 81600B

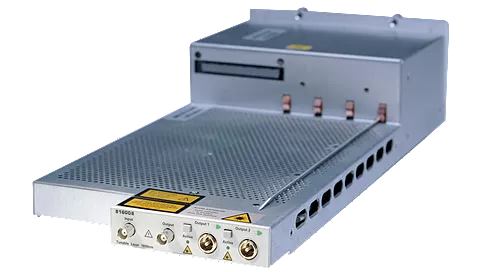

81600B Tunable Laser Source Family
Description
This Tunable Laser Source Family comprises the most versatile and high performance tunable laser sources on the market.
It allows WDM developers and manufacturers to dramatically reduce test cost, and increase profits by quick return on investment.
This unit enables the most precise characterization of advanced optical components with its fast and accurate sweep across the entire wavelength range and specified accuracy during the sweep.
Signal output with low spontaneous emission (SSE) permits measurement of filters with highest dynamic range.
Key Points
Low SSE output port for high dynamic range
High Power output for multipurpose component tests
Built in wavelength meter for optimum tuning precision
Specified performance in the continuous sweep mode
Specifications
Wavelength range: 1440nm to 1640nm
Wavelength resolution: 12.5MHz at 1550nm
Absolute wavelength accuracy: ±10pm
Relative wavelength accuracy: ±5pm
Wavelength repeatability: ±0.8pm
Wavelength stability: ≤ ±1pm
Maximum output power: ≥ +3dBm
