Agilent / HP / Keysight 6692A

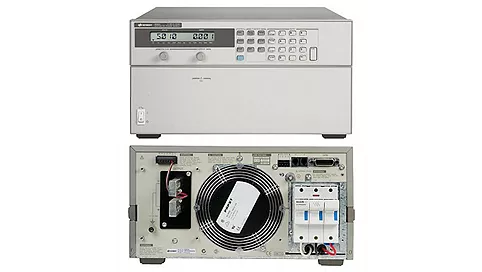

6692A 6600-Watt System Power Supply, 60V, 110A

Please help us customize your browsing experience, by selecting one the below.

Description

This unit is part of the 669x series of power supplies, designed to provide performance needed for critical applications. This switching supply is very reliable. It was designed for base station testing and for simulating 42V battery to be used in future cars. The supply can also be used for other applications that require high power, low noise and high reliability. This unit provides a variety of protection features for both the load and the power supply.

Key Points

High reliability

Auto-paralled up to three units

Outputs can be connected in series

Programmable over-voltage and over-current protection

Over- temperature protection

Discrete Fault Indicator/Remote Inhibit (DFI/RI)

Self-test occurs at power-on from a GPIB command

User definable power-on state

VXI plug&play

Specifications

Output Ratings:
Voltage: 0-60V
Current: 0-110A

Programming Accuracy:
Voltage: 60mV
Current: 65mA

Ripple & Noise: (from 20Hz to 20MHz with outputs ungrounded, or with either output terminal grounded)
Constant Voltage: 1.5mV
Constant Voltage: 25mV
Constant Current: 30mA
