Agilent / HP / Keysight 6684A

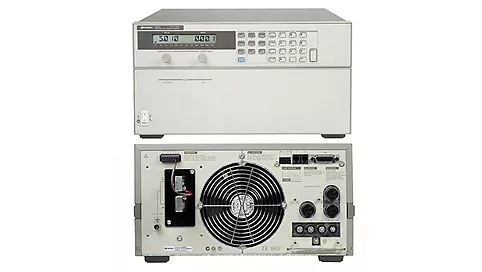

6684A 5000 Watt System Power Supply, 40V, 128A

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is a used switching power supply which can be used in many noise sensitive applications where linear supplies were once the only solution. The low noise has been achieved while still preserving the efficiency and compactness of a switching supply. It also provides a variety of protection features for both the load and the power supply.

Key Points

Auto parallel up to three units

Outputs can be connected in series

Programmable over-voltage and over-current protection

Over-temperature protection

Discrete Fault Indicator/Remote Inhibit (DFI/RI)

Self-test occurs at power-on from an GPIB command

User definable power-on state

VXI plug&play drivers

Specifications

Line Regulation: GPIB

Load Regulation V/C: 1.5mV

Other Features: 9mA - METERED

Output 1,Volts/ Max. Current: 40Volts - 128Amps

Total Power: 5000Watts

Type: DC - Single Out

Form Factor: Benchtop
