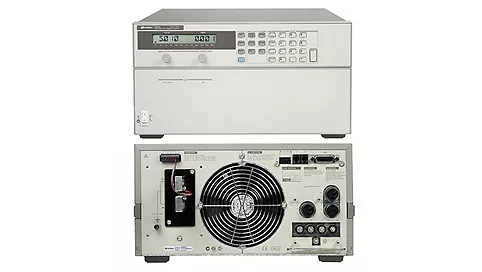

Agilent / HP / Keysight 6683A
6683A 5000 Watt System Power Supply, 32V, 160A
Description
This unit is a part of the 6680 series of power supplies have been designed to provide performance needed for critical applications. These switching power supplies can be used in many noise sensitive applications where linear supplies were once the only solution. The low noise has been achieved while still preserving the efficiency and compactness of a switching supply. The 6680 series also provides a variety of protection features for both the load and the power supply.
Key Points
Auto parallel up to three units
Outputs can be connected in series
Programmable over voltage and over current protection
Over temperature protection
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Self test occurs at power on from an GPIB command
User definable power on state
VXI plug&play drivers
Specifications
Line Regulation: GPIB
Load Regulation V/C: 1.1mV
Other Features: 12mA Metered
Output 1,Volts/ Max. Current: 32Volts to 160Amps
Total Power: 5000Watts
Type: DC Single Out
