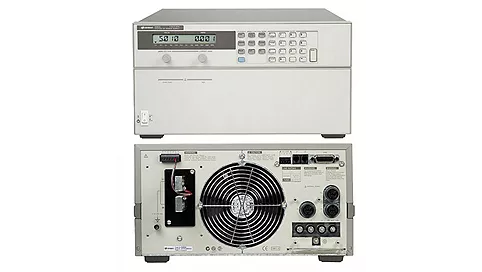

Agilent / HP / Keysight 6682A
6682A 5000 Watt System Power Supply, 21V, 240A
Description
This Power Supply can be used in many noise sensitive applications where linear supplies were once the only solution.
The low noise has been achieved while still preserving the efficiency and compactness of a switching supply.
The 6680 series of used power supplies also provides a variety of protection features for both the load and the power supply.
Key Points
Auto parallel up to three units
Outputs can be connected in series
Programmable over voltage and over current protection
Over temperature protection
Discrete Fault Indicator/Remote Inhibit
Self test occurs at power-on from an GPIB command
User definable power on state
VXI plug & play drivers
Specifications
Number of Outputs: 1
Voltage Output Ratings: 0 to 21V
Current Output Ratings: 0 to 240A
Voltage Ripple and Noise: 1000uV
Current Ripple and Noise: 40mA
Voltage Load Regulation: 650uV
Current Load Regulation: 17mA
Voltage Line Regulation: 650mV
Current Line Regulation: 17mA
