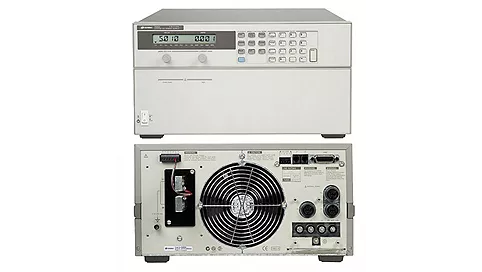

Agilent / HP / Keysight 6680A
6680A 5000 Watt System Power Supply, 5V, 875A
Description
This DC power supply offers speed and accuracy for test optimization.
The single output, 5000W, GPIB 6680A-6684A provide low output ripple and noise; selectable compensation for inductive loads; analog control of output voltage and current; and fan-speed control to minimize acoustic noise.
The Agilent 4375W, GPIB, single output 6680A is a reliable supply with easy integration for manufacturing test, and provides stable and reliable DC power enhanced with extensive protection features.
Key Points
Low Ripple and Noise
Fast up and down Programming
High Accuracy current programming and read back
Standard Commands for Programmable Instruments
Selectable Compensation for inductive loads
Programming Accuracy
Readback Accuracy
Ripple and Noise Constant Voltage Mode
Specifications
Output Rating: 0 to 5V
Programming Accuracy: 5mV
Ripple and Noise: 1.5mV
Readback accuracy: 7.5mV
Load and Line regulation: 190V
