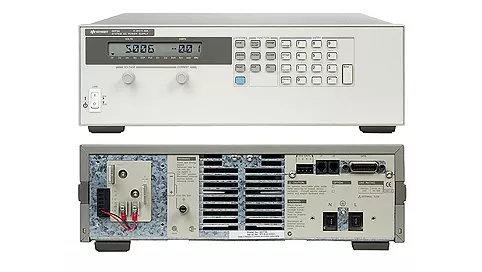

Agilent / HP / Keysight 6673A

6673A 2000 Watt System Power Supply, 35V, 60A

Please help us customize your browsing experience, by selecting one the below.

Description

This unit is a member of the 667x series of 2000 Watt, single output power supply family, with an internal GPIB interface and SCPI programming. This unit provides many talker/listener functions including remote programming of voltage and current with readback of actual measured output values. Sixteen supplies can be connected to one GPIB interface via a serial link connection. This series of 2000 watt DC power supplies has the exceptional, proven reliability that test system engineers look for. It also has the unusual combination of high efficiency and low noise operation.

Key Points

0 to 35Vdc ,0 to 60A

Programming accuracy: 35mV / 0.04%

Load regulation: 0.002% + 1.2mV

Ripple & noise (rms/p-p): 0.8mV / 9mV

Auto-parallel up to five units

Outputs can be connected in series

Programmable over-voltage and over-current protection

Over-temperature protection

Discrete Fault Indicator/Remote Inhibit (DFI/RI)

Self-test occurs at power-on from an GPIB command

User definable power-on state

VXI plug & play drivers

Specifications

Output Ratings:
Output voltage: 0 to 35V
Output current (40°C): 0 to 60A
Programming Accuracy at 25°C ±5°C
Voltage 0.04% + 35mV
Current 0.1% + 40mA

Ripple & Noise from 20Hz to 20MHz:
Voltage rms: 800µV
Peak-to-Peak: 9mV
Current rms: 40mA

Readback Accuracy at 25°C ±5°C (percent of reading plus fixed)
Voltage 0.05% + 50mV
+Current 0.1% + 60mA
