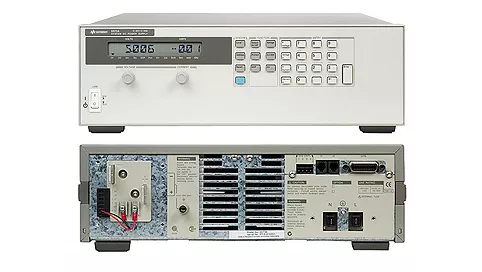

Agilent / HP / Keysight 6672A
6672A 2000 Watt System Power Supply, 20V, 100A
Description
This power supply offer speed and accuracy for test optimization. This unit provide fast, low noise outputs, analog control of output voltage and current, and fan speed control to minimize acoustic noise. This power supply is a highly efficient low noise supply that maximize test throughput and is designed to offer excellent reliability, low ripple and noise, and extremely accurate built in measurements of voltage and current.
Key Points
Auto parallel up to five units
Outputs can be connected in series
Programmable over-voltage and over current protection
Over temperature protection
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Self-test occurs at power-on from an GPIB command
User definable power-on state
VXI plug&play drivers
Specifications
Line Regulation: 4mA
Load Regulation V/C: 1200uV to 4mA
Other Features: 1200mV
Output 1,Volts/ Max. Current: 20Volts to 100Amps
Total Power: 2000Watts
Type: DC
