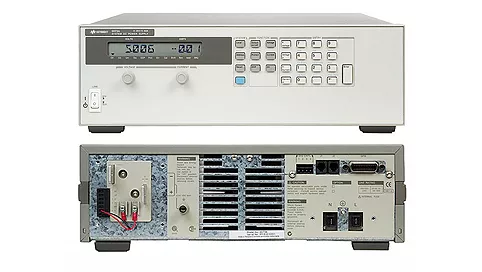

Agilent / HP / Keysight 6671A
6671A 2000 Watt System Power Supply, 8V, 220A
Description
This power supply is a 2000 Watt, single output, series pass regulated power supply, with an internal HP-IB interface and SCPI programming.
This unit provides many talker/listener functions including remote programming of voltage and current with feedback of actual measured output values.
16 supplies can be connected to one HP-IB interface via a serial link connection.
The unit features low ripple and noise, fast up- and down-programming, SCPI (Standard Commands for Programmable instruments), complete front-panel control, calibration and display, remote programming and sensing, fan-speed control to minimize acoustic noise, over-voltage and over-current protection, and HP VXI plug&play drivers.
Key Points
Auto-parallel up to five units
Outputs can be connected in series
Programmable over-voltage and over-current protection
Over-temperature protection
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Self-test occurs at power-on from an GPIB command
User definable power-on state
VXI plug&play drivers
Specifications
Line Regulation: HP-IB - 7mA
Load Regulation V/C: 650uV - 200mA
Other Features: 650uV - SCPI
Output 1,Volts/ Max. Current: 8 Volts - 220 Amps
Total Power: 1760 Watts
Type DC: - Single Out
