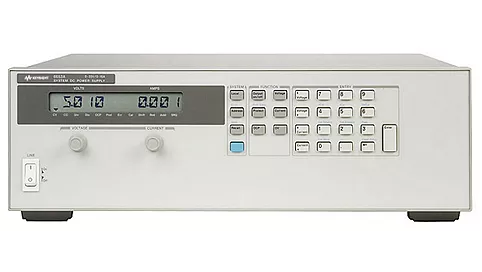

Agilent / HP / Keysight 6654A
6654A 500 Watt System Power Supply, 60V, 9A
Description
This unit is one of the 665x series of 500 Watt, single output, series pass regulated power supplies, with an internal GPIB interface and SCPI programming.
These models provide many talker/listener functions including remote programming of voltage and current with feedback of actual measured output values.
Sixteen supplies can be connected to one GPIB interface via a serial link connection.
Key Points
Increase test throughput with fast, low-noise outputs
Perform remote programming using GPIB interface with SCPI command
set (drivers available)
Utilize analog control of output voltage and current
Control up to 16 supplies through one GPIB address via serial link feature
Achieve greater output flexibility through parallel and series connections
of multiple supplies
Simplify cabling with built-in measurements
Streamline tasks with front panel control and advanced programmable
features
Ensure DUT safety with protection features
Specifications
Output Ratings:
Output voltage: 0 to 60V
Output current (40°C): 0 to 9A
Maximum current (50°C/55°C): 8.1 A/7.7 A
Programming Accuracy at 25°C ±5°C
Voltage 0.06% + 26mV
Current 0.15% + 8mA
Ripple & Noise from 20Hz to 20MHz
Voltage rms: 500µV
Peak-to-Peak: 5mV
Current rms: 3mA
Readback Accuracy at 25°C ±5°C (percent of reading plus fixed) System models only
Voltage 0.07% + 40mV
+Current 0.15% + 7mA
-Current 0.35% + 15mA
