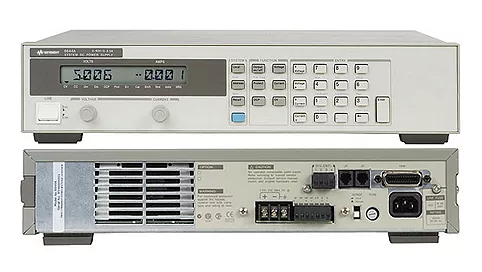

Agilent / HP / Keysight 6641A
6641A DC Power Supply, 0-8 V, 0-20 A, 160 W, GPIB
Description
This power supply is one of the 664x series of 200 watt, single output, series pass regulated power supplies, with an internal GPIB interface and SCPI programming.
These models provide many talker/listener functions including remote programming of voltage and current with feedback of actual measured output values.
16 supplies can be connected to one GPIB interface via a serial link connection.
Key Points
Auto parallel up to three units
Outputs can be connected in parallel or in series
Programmable over-voltage and over-current protection
Over temperature protection
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Self test occurs at power-on from an GPIB command
User definable power-on state
VXI plug&play drivers
Specifications
Line Regulation: GPIB
Load Regulation V/C: 4mV
Other Features: .5mV - metered 5
Output 1,Volts/ Max. Current: 8Volts to 20Amps
Total Power: 200Watts
Type: DC - Single Out
