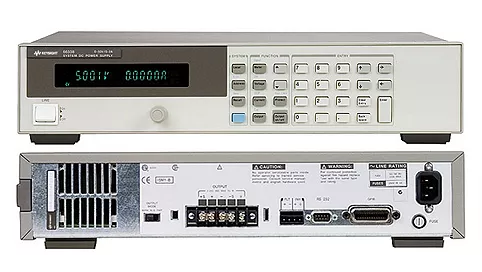

Agilent / HP / Keysight 6633B

6633B 100 Watt System Power Supply, 50V, 2A

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is a used DC Power Supplies that is an ideal power source for demanding production test applications. This unit offers high performance and precision measurements in a one box solution. To reduce test system development time and provide precision testing, this unit provides current measurement down to the micro amp level. This unit also provides high speed programming with under 4 millisecond response time.

Key Points

High throughput

Precision low current measurement

Low output noise

High speed programming

GPIB and RS-232 interface

VXI plug&play drivers

Specifications

Output voltage: 0 to 50V

Output current: 0 to 2A

Voltage: 20mV

Voltage Normal mode rms: 0.5mV

Voltage Normal mode peak to peak: 3mV

Fast mode rms/peak to peak: 1mV/15mV

Current rms: 2mA

Load Voltage: 4mV

Load Current: 1mA

Line Voltage: 1mV

Other Features: 1mV
