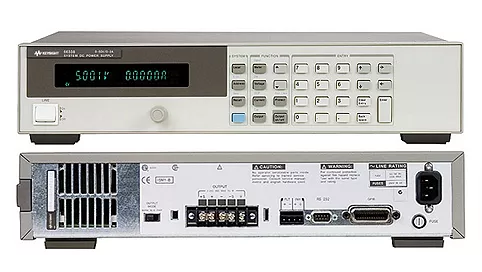

Agilent / HP / Keysight 6632B
6632B 100 Watt System Power Supply, 20V, 5A
Description
This unit is an ideal power source for demanding production test applications.
This unit offers high performance and precision measurements in a one-box solution.
To reduce test-system development time and provide precision testing, this provides current measurement down to the microamp level.
It also provides high-speed programming with under 4 millisecond response time.
Additional features include high throughput, Precision low current measurement, Low-output noise, High-speed programming, GPIB and RS-232 interface.
Key Points
Regulation: 0.001%
Metered
Programmable
DC Floating voltage up to ±240Vdc maximum from chassis ground
Remote Sensing
Command-Processing Time 4ms for the power supplies connected
directly to the GPIB (display enabled)
Output-Programming Response Time, rise and fall time (10/90% and
90/10%) of the output voltage is less than 2ms (400µs in fast mode)
GPIB Interface Capabilities
VXIplug&Play
Specifications
Output Ratings:
Low-range volts, amps: 0 to 7V, 0 to 5A; 0 to 20V, 0 to 2A; 0 to 7V, 0 to 10A
High range volts, amps: 0 to 20V, 0 to 2A; 0 to 50V, 0 to 0.8A; 0 to 20V, 0 to 4A
Programming Accuracy:
Voltage: 19mV, + 0.06%; 50mV, + 0.06%; 19mV, + 0.06%
Current: 50mA, + 0.16%; 20mA, + 0.16%; 100mA, + 0.16%
Ripple & Noise:
Constant voltage rms: 500µV
Peak-to-peak: 3mV
Constant current rms: 1mA
Readback Accuracy:
Voltage: 20mV, + 0.05%; 50mV, + 0.05%; 20mV, + 0.05%
+Current: 10mA, + 0.1%; 4mA, + 0.1%; 20mA, + 0.1%
-Current: 25mA, + 0.2%; 8mA, + 0.2%; 50mA, + 0.2%
Line Voltage: 0.5mV
