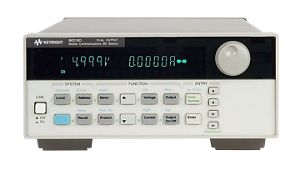

Agilent / HP / Keysight 66319D
66319D Dual Mobile Comm DC Source Battery Emulation, DVM
Description
This Dual output mobile communications DC source provides two outputs for testing both the main battery power and the battery charger circuitry, allowing customers to test phones and chargers with the same equipment.
This feature helps save on rack space (2 outputs in a ½ rack box) and eliminates the need for two separate power supplies.
Excellent voltage transient response ensures maximum test-system throughput by minimizing device shutdowns due to significant voltage drops in the test wiring.
This unit provides all of the capabilities of the 66319B with the addition of a built in digital voltmeter.
Key Points
Programming accuracy at 25°C ±5°C
Readback Accuracy
Benchtop form factor
Number of outputs of 2o/p
Specifications
Line Regulation: GPIB
Output 1,Volts/ Max. Current: 15Vdc to 5AMPS
Output 2,Volts/ Max. Current: 12Vdc to 2.5AMPS
Type: DC - Dual Output
