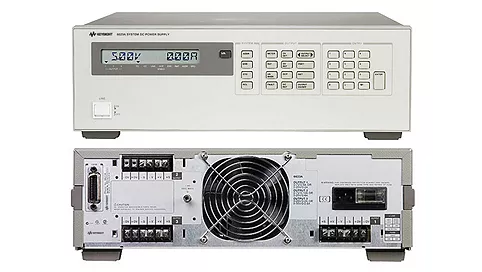

Agilent / HP / Keysight 6629A
6629A Precision System Power Supply, 50W, 4 outputs
Description
This unit is part of the family of multiple output, precision, GPIB system power supplies that have up to four linear low noise power supply outputs combined with a built in GPIB interface.
Simple programming commands ease access to all features and capabilities.
Fourteen bit programming and read back of current and voltage and dual ranging outputs provide greater precision and flexibility.
Key Points
Over-temperature protection
Self-test occurs at power-on from a GPIB command
11 store-recall states; 4 nonvolatile
User-definable power-on state
Option 750 for relay control and DFI/RI
VXI plug&play drivers
Specifications
Output Ratings (4 outputs):
Low-range volts, amps 50W: 0 to 16V, 0 to 200mA
High range volts, amps 50W: 0 to 50V, 0 to 1A or 0 to 16V, 0 to 2A
Programming Accuracy (4 outputs):
Voltage 50W: 3mV + 0.016% (low), 10mV + 0.016% (high)
Current 50W: 185µA + 0.04% (low), 500µA + 0.04% (high)
Ripple & Noise (4 outputs):
Constant voltage rms: 500µV
Peak-to-peak: 3mV
Constant current rms: 0.1mA
Readback Accuracy (4 outputs):
Voltage 50W: 0.016% + 3.5mV (low), 0.016% + 10mV (high)
+/-Current 50W: 0.04% + 250µA (low), 0.04% + 550µA (high)
