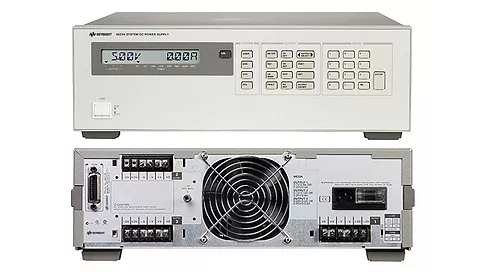

Agilent / HP / Keysight 6624A
6624A DC Power Supply, Quad-Output, 2 Outputs at 7V/5A, 2 Outputs at 20V/2A, GPIB
Description
This unit is a quad-output, GPIB system power supply, that has up to four linear low noise power supply outputs combined with a built in GPIB interface.
It's simple programming commands ease access to all features and capabilities.
Dual ranging outputs provide greater flexibility in available voltage and current.
Key Points
4 independent isolated outputs
Dual range linear outputs
Multiple sources in an intergrated one-box solution
Overvoltage and overcurrent protection
GPIB programming of voltage and current
Operations manual
Specifications
Output Ratings (2 outputs each)
Low-range volts, amps: 0 to 7V, 0 to 5A; 0 to 20V, 0 to 2A
High range volts, amps: 0 to 20V, 0 to 2A; 0 to 50V, 0 to 0.8A
Programming Accuracy (2 outputs each)
Voltage: 19mV, + 0.06%; 50mV, + 0.06%
Current: 50mA, + 0.16%; 20mA, + 0.16%
Ripple & Noise (2 outputs each)
Constant voltage rms: 500µV
Peak-to-peak: 3mV
Constant current rms: 1mA
Readback Accuracy (2 outputs each)
Voltage: 20mV, + 0.05%; 50mV, + 0.05%
+Current: 10mA, + 0.1%; 4mA, + 0.1%
-Current: 25mA, + 0.2%; 8mA, + 0.2%
