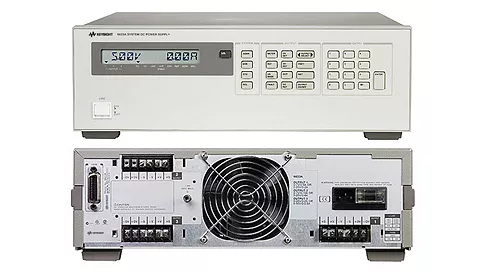

Agilent / HP / Keysight 6621A
6621A System Power Supply, 80W, 2 outputs
Description
This unit offers spec and accuracy for test optimization.
The multiple output, 4W - 105W GPIB provide dual range outputs; fast, low noise outputs; built in measurements and advanced programmable features; and protection features to ensure DUT safety.
This is a versatile solution help improve system accuracy and reduce test time in a 3U high package.
Key Points
GPIB programming of voltage and current
Measured voltage and current readback over the GPIB
Two outputs can be connected in parallel or in series
Automatic selection of operating voltage and current range
Programmable over-voltage and over-current protection
Self-test occurs at power-on from an GPIB command
Electronic calibration via GPIB
10 store-recall states
SCPI (Standard Comments for Programming Instruments)
VXI plug&play drivers
Specifications
Output Ratings:
Low-range volts, amps: 0 to 7V, 0 to 10A
High range volts, amps: 0 to 20V, 0 to 4A
Programming Accuracy
Voltage: 19mV, + 0.06%
Current: 100mA, + 0.16%
Ripple & Noise:
Constant voltage rms: 500µV, 500µV
Peak-to-peak: 3mV, 3mV
Constant current rms: 1mA, 1mA
Readback Accuracy:
Voltage: 20mV, + 0.05%
+Current: 20mA, + 0.1%
-Current: 50mA, + 0.2%
