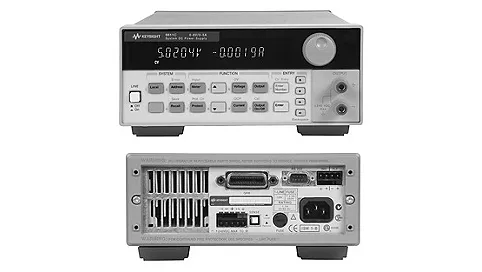

Agilent / HP / Keysight 6614C

6614C 50 Watt System Power Supply, 100V, 0.5A

Please help us customize your browsing experience, by selecting one the below.

Description

This power supply will provide speed and accuracy for test optimization. The single output, 40-50W GPIB 6611C-6614C has a small, compact size for bench and system use; fast, low-noise outputs; and dual-range, and precision low current measurement. This unit is a versatile low-power solution that was designed for demanding applications, and is a one-box solution that has extensive measurement capabilities and built-in GPIB and RS-232 interfaces.

Key Points

Output Ratings
Voltage: 0 to 100 V
Current: 0 to 0.5 A

Programming Accuracy at 25°C ±5°C
Voltage: 50m V
+Current 0.05% + 0.5m A

Ripple & Noise from 20Hz to 20MHz
Voltage rms: 0.5mV
Voltage Peak-to-Peak: 5mV
Normal mode rms: 1mA

Load & Line Regulation
Load Voltage: 5mV
Load Current: 0.5mA
Line Voltage: 1mV
Line Current: 0.25mA

Specifications

Load Regulation V/C: 2mV

Other Features: .5mV

Output 1,Volts/ Max. Current: 20 Volts - 10 Amps

Total Power: 200 Watts

Type: DC - Single Out
