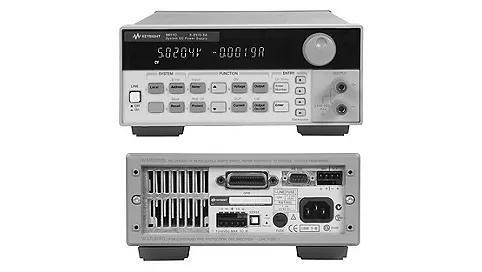

Agilent / HP / Keysight 6612C
6612C 40 Watt System Power Supply, 20V, 2A
Description
This unit is designed to maximize the throughput of DUTs through the manufacturing test process with fast programming and measurement, and also active down programming.
It offers many advanced programmable features including stored states and status reporting.
It's programming is done using industry standard SCPI commands via the GPIB or RS-232.
Test system integration is further simplified by using the VXIPlug&Play drivers.
This unit is an ideal power source for demanding production test applications.
This DC power supply offers high performance and precision measurements in a one-box solution.
To reduce test-system development time and provide precision testing, the 6612C provides current measurement down to the microamp level.
The 6612C also provides high-speed programming with under 4 millisecond response time.
Key Points
Maximum Power Rating: 40W
Voltage/Current Output Rating: 0 to 20V, 0 to 2A
High throughput
Precision low current measurement
Low-output noise
High-speed programming
GPIB and RS-232 interface
SCPI (Standard Commands for Programmable Instruments)
VXI plug&play drivers
Specifications
Load Regulation V/C: 2mV
Other Features: .5mV
Output 1,Volts/ Max. Current: 20 Volts - 5 Amps
Total Power: 50 Watts
Type: DC - Single Out
