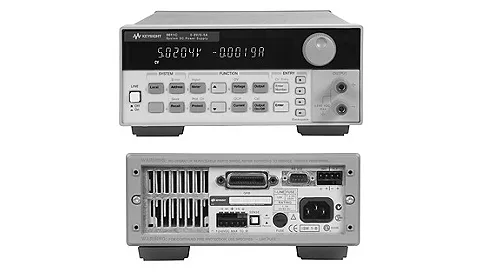

Agilent / HP / Keysight 6611C
6611C 40 Watt System Power Supply, 8V, 5A
Description
This is a System DC Power Supply.
It is an ideal power source for the demanding production test applications.
This DC power supply has high performance and precision measurements in a one-box solution.
To reduce test-system development time and provide precision testing, this unit has current measurement down to the microamp level.
It will also provide high-speed programming with under 4 millisecond response time.
Key Points
High throughput
Precision low current measurement
Low-output noise
High-speed programming
GPIB and RS-232 interface
SCPI (Standard Commands for Programmable Instruments)
VXI plug&play drivers
Specifications
Output Ratings:
Voltage: 0 to 8V
Current: 0 to 5A
Programming Accuracy at 25°C ±5°C
Voltage: 5m V
+Current 0.05% + 2m A
Ripple & Noise from 20Hz to 20MHz
Voltage rms: 0.5mV
Voltage Peak-to-Peak: 3mV
Normal mode rms: 2mA
Load & Line Regulation
Load Voltage: 2mV
Load Current: 1mA
Line Voltage: 0.5mV
Line Current: 0.5mA
