Agilent / HP / Keysight 66104A
66104A DC Power Module, 60V, 2.5A
Description

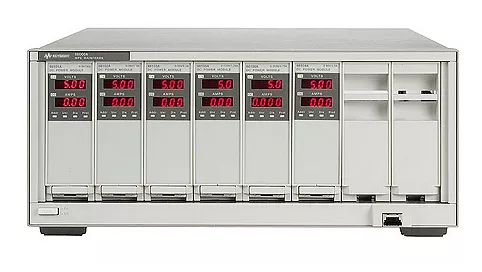

This is a DC module and power system. This will simplify test-system assembly, cabling programming, debugging, and operation. This unit is ideal for ATE and production test environments where it can supply bias power and stimulus to subassemblies and final products. The modular power system will save rack space. The 66000A 7-in high (4-EIA units) mainframe will accommodate up to eight DC power modules.
Key Points
Output sequencing
Low ripple and noise
High-accuracy read-back of voltage and current over GPIB
Standard Commands for Programmable Instruments (SCPI)
VXI plug&play drivers
Optional keyboard and display unit
Built-in self-test
Specifications
Output Ratings at 40°C
Output voltage: 0 to 60V
Output current: 0 to 2.5A
Maximum power: 150W
Programming Accuracy at 25°C ±5°C
Voltage 0.03% + 27mV
Current 0.03% + 1.2mA
Ripple & Noise (20Hz to 20MHz)
Constant Voltage rms: 9mV
Peak-to-Peak: 15mV
Constant Current rms: 1mA
Readback Accuracy (via GPIB or keyboard display at 25°C ±5°C)
Voltage 0.02%+ 16mV
Current 0.02%+ 1mA
