Agilent / HP / Keysight 66103A
66103A DC Power Module, 35V, 4.5A
Description
This Module offers speed and accuracy for test optimization.

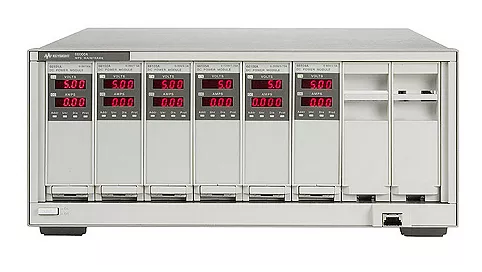

This unit 1200W per mainframe, GPIB 66100 series will permit up to 8 outputs of 150W per output in 4U of rack space; will reconfigure fast with easily swappable modules; fast, low noise outputs; LIST mode and advance triggering system.
The Agilent 150W, GPIB, module output this unit is a flexible modular supply that was designed for automated testing that will help meet changing requirements in ATE and production test with a modular design that conserves rack space and makes simple the system cabling and assembly.
Key Points
Output sequencing
Low ripple and noise
High accuracy read back of voltage and current over GPIB
Standard Commands for Programmable Instruments (SCPI)
VXI plug&play drivers
Optional keyboard and display unit
Built in self test
Cabling Programming
Debugging
Operation
Specifications
Output Ratings: 40°C
Output voltage: 0 to 35V
Output current: 0 to 4.5A
Maximum power: 150W
Constant Voltage rms: 5mV
Peak to Peak: 10mV
Constant Current rms: 2mA
Load Regulation V/C: 1mV
Other Features: 1mV
Total Power: 150Watts
