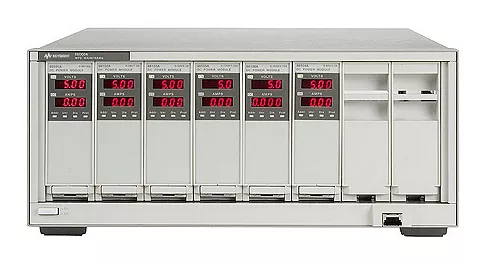

Agilent / HP / Keysight 66101A
66101A DC Power Module, 8V, 16A
Description
This power module will offer speed and accuracy for test optimization. The Agilent 128W, GPIB, module output this unit is a flexible modular supply designed for automated testing that will help to meet changing requirements in ATE and production test with a modular design that will conserve rack space and also simplify the system cabling and assembly. This unit simplifies test system assembly, cabling programming, debugging, and operation. It is ideal for ATE and production test environments, where it can supply bias power and stimulus to subassemblies and final products.
Key Points
Low ripple and noise
High-accuracy read-back of voltage and current over GPIB
Standard Commands for Programmable Instruments (SCPI)
VXI plug&play drivers
Optional keyboard and display unit
Built in self test
Cabling programming
Debugging and operation
Output sequencing Low ripple and noise
Specifications
Output Ratings: 40°C
Output voltage: 0 to 8V
Output current: 0 to 16A
Maximum power: 128W
Peak to Peak: 5mV
Constant Current rms: 8mA
Voltage: 0.02%+2mV
Current: 0.02%+6mA
