Agilent / HP / Keysight 6572A

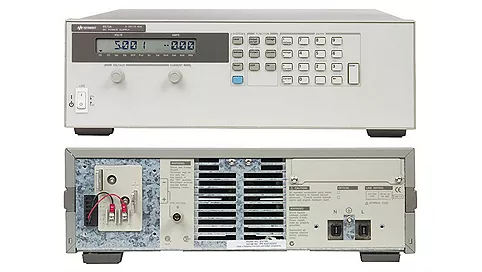

6572A 2000 Watt Power Supply, 20V, 100A

Please help us customize your browsing experience, by selecting one the below.

Description

This Power Supply comes with front panel and analog programming of output voltage and current. Up to five front panel settings can be stored in nonvolatile storage registers for later recall. Agilent high performance DC power supplies offer speed and accuracy for test optimization.

Key Points

Analog programming of output voltage and current

Self test initiated at power up

Electronic calibration from front panel

Five nonvolatile store and recall states

User defined power on state

Specifications

Output Voltage: 0 to 20V

Output Current: 0 to 100A

Accuracy Voltage: 0.04% + 20mV

Accuracy Current: 0.1% + 60mA
