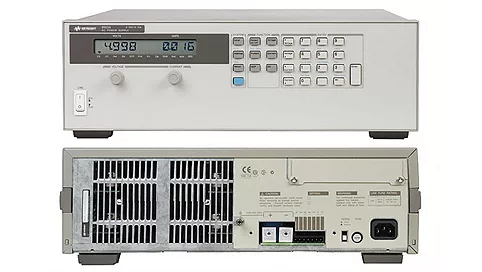

Agilent / HP / Keysight 6554A
6554A 500 Watt DC System Power Supply, 60V, 9A
Description
This DC power supplies have front panel and analog programming of output voltage and current. Up to five front panel settings can be stored in nonvolatile storage registers for later recall.
Key Points
Single Output
Series Pass Regulated
Analog programming of output voltage and current
Self test initiated at power up
Electronic calibration from front panel
Five nonvolatile store and recall states
User defined power on state
Fan speed control to minimize acoustic noise
Over voltage and over current protection
Over temperature protection
Specifications
Line Regulation: 0.5mA
Load Regulation V/C: 4mV to 0.5mA
Other Features: 1mV
Output 1,Volts/ Max. Current: 60Volts to 9Amps
Total Power: 500Watts
Type: DC to Single Out
