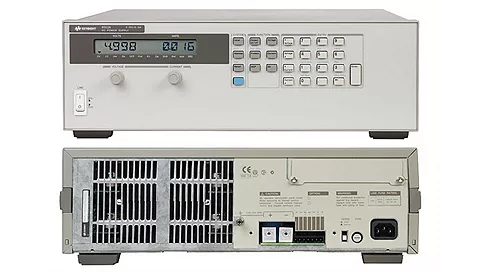

Agilent / HP / Keysight 6553A
6553A 500 Watt DC System Power Supply, 35V, 15A
Description
This Power Suppy has series pass regulation , with front panel and analog programming of output voltage and current. Up to five front panel settings can be stored in nonvolatile storage registers for later recall. This unit offer tailored solutions for specific needs. The single output, 500W, 6551A-6555A provide front panel and analog control of output voltage and current, fast, low noise outputs, fan speed control to minimize acoustic noise and protection features to ensure DUT safety.
Key Points
Single output units
Analog programming of output voltage and current
Self test initiated at power up
Electronic calibration from front panel
Five nonvolatile store and recall states
User defined power on state
Fan speed control to minimize acoustic noise
Auto parallel of up to three 655xAs
Over voltage and over current protection
Over temperature protection
Specifications
Line Regulation: 0.75mA
Load Regulation V/C: 3mV to 0.5mA
Other Features: 1mV
Output 1,Volts/ Max. Current: 35Volts to 15Amps
Total Power: 500Watts
Type: DC Single Out
