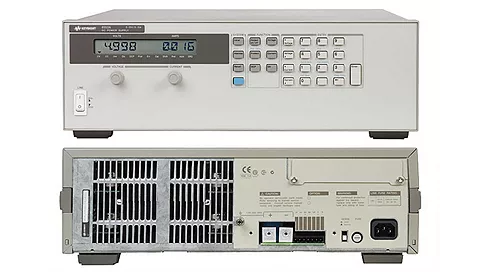

Agilent / HP / Keysight 6552A
6552A 500 Watt DC System Power Supply, 20V, 25A
This unit is a 500Watt, single output, series pass regulated power supply, with front panel and analog programming of output voltage and current.
Up to five front panel settings can be stored in nonvolatile storage registers for later recall.
These Power Supplies offer tailored solutions for specific needs.
It provide front panel and analog control of output voltage and current; fast, low noise outputs; fan speed control to minimize acoustic noise; and protection features to ensure DUT safety.
This unit is a flexible and reliable power with fast protection features that streamlines common tasks and accelerates test throughput with fast up and downprogramming.
Parallel and Series Multiple Unit Combinations
Jumper calibration security
Line Regulation: 1mA
Load Regulation V/C: 2mV to 1mA
Other Features: 0.5mV
Output 1,Volts/ Max. Current: 20Volts to 25Amps
Total Power: 500Watts
Type: DC - Single Out
