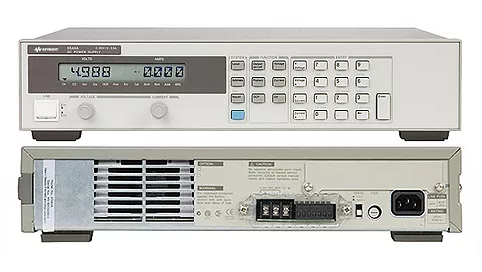

Agilent / HP / Keysight 6542A
6542A 200 Watt Power Supply, 20V, 10A
Description
This high performance DC power supplies offer speed and accuracy for test optimization.
The single output, 200W, 6541A-6545A provide front panel and analog control of output voltage and current, fast, low noise outputs, fan speed control to minimize acoustic noise and protection features to ensure DUT safety.
The single output of this unit is a reliable supply with clean output to ensure accurate measurements and offers the right mix of performance and functionality for general purpose applications on the bench or in analog controlled systems.
Key Points
Analog programming of output voltage and current
Self test initiated at power up
Five nonvolatile store and recall states
User defined power on state
Fan-speed control to minimize acoustic noise
Over voltage and over current protection
Over temperature protection
Specifications
Load Regulation V/C: 2mV
Other Features: 0.5mV
Output 1,Volts/ Max. Current: 20Volts to 10Amps
Total Power: 200Watts
Type: DC Single Out
