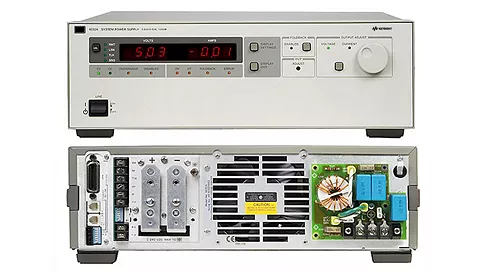

Agilent / HP / Keysight 6035A

6035A System Autoranging DC Power Supply, 500V, 5A

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

The Agilent/HP 6035A is part of the 603x family of power supplies which provide a wide and continuous range of output voltage and current levels at the rated power output. The Agilent/HP 6035A 200 watt and 1000 watt DC power supplies takes the place of multiple power supplies in your test system by providing maximum power at a variety of operating points. Industry standard SCPI commands and VXI Plug & Play drivers make system integration easy. Using the serial link, up to 16 power supplies can be connected through one GPIB address. The Agilent 6035A power supply has excellent electrical efficiency, making it a good choice for large systems. The Agilent 6035A provides great flexibility for applications with varied or changing needs.

Key Points

Maximum Power: 1050W

Single Output

Voltage/Current Output Ratings: 1) 500V, 2A; 2) 350V, 3A; or 3) 200V, 5A

GPIB Interface

SCPI (Standard Commands for Programming Instruments)

Autoranging output

VXI plug&play drivers

Specifications

Line Regulation: 18mA

Load Regulation: V/C 40mV - 35mA

Other Features: 13mV

Output 1,Volts/ Max. Current: 5 Volts - 500 Amps

Total Power: 1050 Watts

Type: DC
