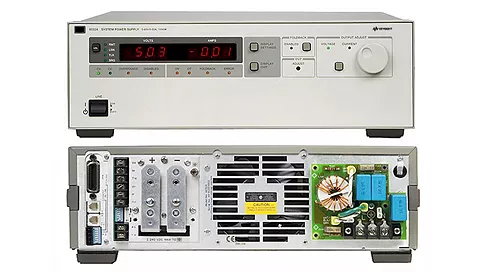

This unit is part of the 603x family of power supplies which provide a wide and continuous range of output voltage and current levels at the rated power output.
They provide great flexibility for applications with varied or changing needs.
Maximum Power: 1064W
Voltage/Current Output Ratings: 1) 20V, 50A; 2) 14V, 76A; or 3) 7V, 120A
SCPI (Standard Commands for Programming Instruments)
VXI plug&play drivers
Line Regulation: HP-IB - 25mA
Load Regulation: V/C 3mV - 15mA
Other Features: 2mV
Output 1,Volts/ Max. Current: 20 Volts - 120 Amps
Total Power: 1064 Watts
Type: DC - Single Out
