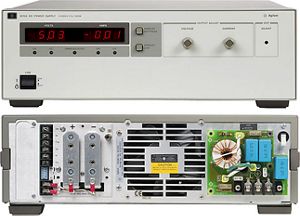

Agilent / HP / Keysight 6011A
6011A 1064W DC System Power Supply, No Interface, Single Output
Description
Thisunit is part of the 601x series of autoranging power supplies which provide maximum power over a wide range of voltage and current combinations without having to manually select the proper output range.
Key Points
Auto ranging outputs provide maximum power at a variety of operating points
Over voltage features protect DUTs quickly and automatically
Auto parallel or auto-series connections enable greater output flexibility
Ten turn pots for precise local control
Specifications
Maximum Power: 1,064W
Single Output
Voltage/Current Output Ratings: 1) 20V, 50A; 2) 14V, 76A; or
3) 7V, 120A
Complete front panel control/display
Constant current/constant voltage protection
Remote programming and sensing
Autoranging output
Ten-turn voltage and current controls
Auto-series, auto-parallel operation
